Product Name:

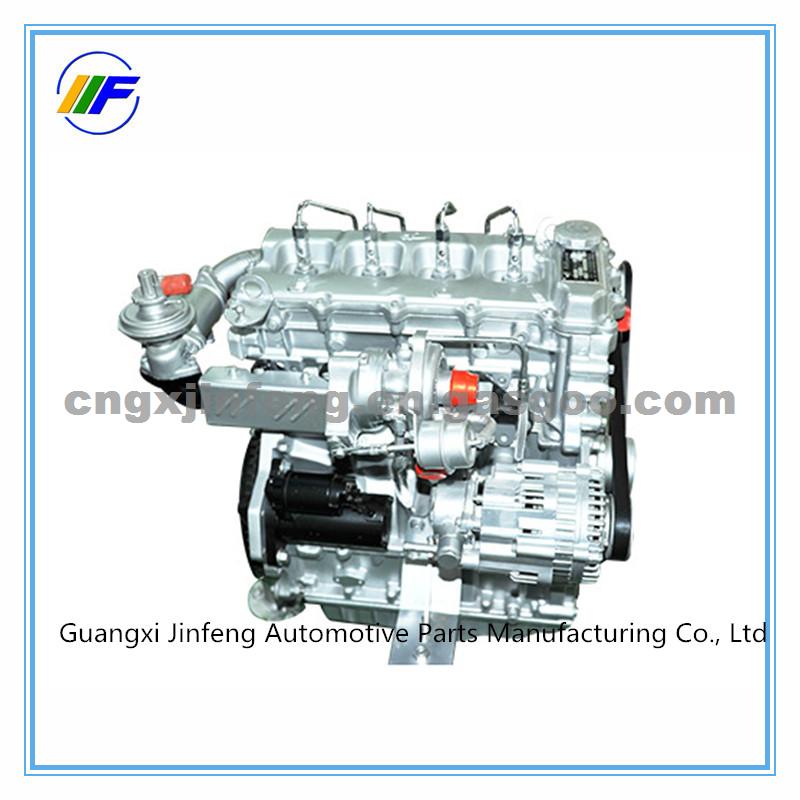

Pick Up Truck Engine Assembly Yuchai
Product Attribute:
Model:YC4W
Engine Displacement:2.488l
No. of Cylinders:4
Displacement:2.488l
G.W:260kg
Color:Blue
Engine Type:Diesel
Cylinder Patterns:L
Valve Train:4
Injection Way:Petrol Injection
The Maximum Power Speed:210-280rpm
Application:
Golden dragen, Yutong, Ankai, Kinglong, Sunwin, Chunlan, Udan auto, Daewoo, Changang bus, JAC, Dongfeng, FAW, HOWO, Yuejin, Jinbei, Foton, Rowar truck.
Product Description:
Model introduction
YC4W series diesel engine prototype is ford company developed jointly with the FEV company funded by the U.S. department of energy project DIATA diesel engine. DIATA later by yuchai diesel engine, and the FEV joint improvement carefully, strictly follow the mechanical development process, further improve the engine of advanced and applicable, the final development of yuchai YC4W series diesel engine all intellectual property rights.
YC4W1. 4 l diesel engine is for research and development of new type high speed passenger car market small direct injection (HSDI) diesel engine. Integrated with the electronically controlled high pressure common rail injection system and so on many current advanced car engine technology, energy saving, environmental protection, high efficiency, low emissions and other advantages, is an ideal power economical diesel passenger cars.
Model features
1. Structure and reliable
YC4W diesel engine structure scheme for through bolt clamping, full aluminium, ladder frame structure.
2. Reliable and durable
YC4W diesel engine structure, strong rigidity, and in strict accordance with the depth of the European machinery development program development, engine overhaul of normal maintenance, use range is more than 250000 kilometers.
3. Fuel economy
YC4W diesel engine full load the minimum fuel consumption is less than 210 g/kW. H.
4. Quiet and comfortable
YC4W noise level 1 m for the diesel engine test bench: full load noise of 92 db (A), the largest idle noise of 69 db (A).
Ultra-low emissions
YC4W diesel engine without post-processing to the 3 levels, EGR + double DOC can amount to mark the 4, EGR + DOC + DPF can amount to mark the 5.
5. Powerful
The belt bleed valve turbocharger (WG) aircraft power 46 kw/L, using variable nozzle ring (VNT) models of the turbocharger power reached 53 kw/L, with double pressurization litres of power of 65 kw/L, is a world leading level.YC4W1. 4 l with a car USES 6 mt gearbox, (0 ~ 100 km/h) in situ to accelerate time: 13.19 s.
6. The light in weight
4 w1. 4 l diesel engine block, cylinder head, base, the main structure of the oil sump use aluminium, the weight is only 130 kg, is currently the only main body of the whole aluminum diesel engine, is also the most light passenger car diesel engine.
7. Minimum size
4 w is domestic and even the world's smallest four cylinder vehicle diesel engine, supporting strong adaptability.
8. Cooling uniformity
Minimize the deformation of cylinder hole is important steps to reduce emissions and oil consumption, every cylinder along the uniform temperature distribution around the hole is very important, YC4W diesel engine by using cross flow cooling system to realize this goal, superior to the traditional ZongLiu cooling system.
